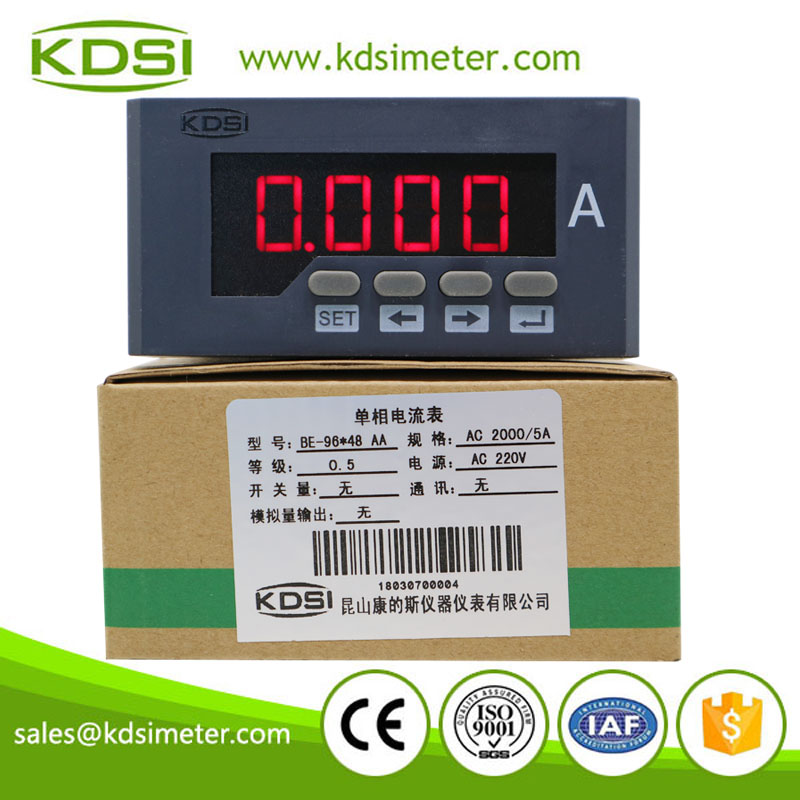

BE-96x48 AA
KDSI Also can do OEM
Specification | ||
| Model | BE-96x48 AA |
Measure range | Current(I) | |
Measure voltage | AC 0-500 V | |
Rated current | AC 0~5 A(can add CT) | |
Expand function | RS485,Modbus,switch input/output,analog output | |
Frame size | 96*48mm | |
Cutout size | 92*45mm | |
Material | ABS plastic shell housing | |
Power supply | AC/DC 80~270V,AC380V, AC100V |
Product Description | |
| Overview BE-AA series High precision measurement of three phase AC current. Provide the digital tube display, local data query. Digital LED display ,can set the ratio of current. |
Features 1.Communication interface 1 way RS-485 communication, Modbus-RTU protocol 2.Baud rate: 1200~9600bps, the default 2400bps 3.Switch input support 2 stem node input. 4.The switch output support 2 relay output, capacity: AC 250V/5A, DC 30V/5A 5.Transmission output support 1 analog output: 0/4~20mA or 0~5/10V | |
Technical parameters | Value | |
input | Normal value | Voltage :300V、500V,Current :1A、5A,(Or ordered by customer) |
Overload | Current:continual 1.2times,instaneous10times/1s; Voltage:continual1.2times,instaneous 2times/1s. | |
Frequency | 45~65Hz | |
Accuracy class | 0.5 | |
Display | LED display,range in:0~9999 | |
Power supply | Voltage range | AC 220V |
Power consumption | <4VA | |
Insulation resistance | ≥100MΩ | |
Isolation voltage | Between power supply/input/output 2kV/1min(rms) | |
MTBF | ≥50000h | |
Environment | Temperature | Work:-10~55℃,Storage:-25~+70℃ |
Humidity | ≤93%RH,In the place without dew and corrosive gas | |
Altitude | ≤2000m |
Specification | ||
| Model | BE-96x48 AA |
Measure range | Current(I) | |
Measure voltage | AC 0-500 V | |
Rated current | AC 0~5 A(can add CT) | |
Expand function | RS485,Modbus,switch input/output,analog output | |
Frame size | 96*48mm | |
Cutout size | 92*45mm | |
Material | ABS plastic shell housing | |
Power supply | AC/DC 80~270V,AC380V, AC100V |
Product Description | |
| Overview BE-AA series High precision measurement of three phase AC current. Provide the digital tube display, local data query. Digital LED display ,can set the ratio of current. |
Features 1.Communication interface 1 way RS-485 communication, Modbus-RTU protocol 2.Baud rate: 1200~9600bps, the default 2400bps 3.Switch input support 2 stem node input. 4.The switch output support 2 relay output, capacity: AC 250V/5A, DC 30V/5A 5.Transmission output support 1 analog output: 0/4~20mA or 0~5/10V | |
Technical parameters | Value | |
input | Normal value | Voltage :300V、500V,Current :1A、5A,(Or ordered by customer) |
Overload | Current:continual 1.2times,instaneous10times/1s; Voltage:continual1.2times,instaneous 2times/1s. | |
Frequency | 45~65Hz | |
Accuracy class | 0.5 | |
Display | LED display,range in:0~9999 | |
Power supply | Voltage range | AC 220V |
Power consumption | <4VA | |
Insulation resistance | ≥100MΩ | |
Isolation voltage | Between power supply/input/output 2kV/1min(rms) | |
MTBF | ≥50000h | |
Environment | Temperature | Work:-10~55℃,Storage:-25~+70℃ |
Humidity | ≤93%RH,In the place without dew and corrosive gas | |
Altitude | ≤2000m |
